    Custom Portable Ultra Short Throw Wuxga Laser Projector 3LCD Business 4200lm

    Ask Lasest Price
    Brand Name : Yeoan
    Model Number : YA425U
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Custom Portable Ultra Short Throw Wuxga Laser Projector 3LCD Business 4200lm

    This projector has a throw ratio of 0.235:1, enabling it to throw a 100” projection with an ultra short throw distance of just 9”. Its maximum projection size is 120”. This UST projector is wireless, with a hassle-free installation suitable for any environment.

    It is equipped with industrial-grade, long-lasting light bulbs that deliver years of lamp life with daily use.


    Highlights:

    Fashion design and light weight, WUXGA 1920 x 1200, 4200 lumen brightness,

    ultra short throw 0.235:1,this easy-to-install projector allows for an image size of up to 120"

    Latest system, Auto keystone correction, Wireless screen sharing,

    HDMI port, 2.4G/5G WIFI, Silent fan, 360° projection,


    Application:

    Widely used at home, classroom, office, meeting room, hotel, hospital, school, church, factories and son on.


     Brightness
    (Anti Lumen)
    4200
    ResolutionWUXGA
    Key parts
     PanelSONY 0.64"
    Throw Ratio0.235:1
    Zoom RatioN/A
    Lens ShiftN/A
    Light sourceLASER
    Overall Spec
    Light source Life timeFullNirmal/Normal mode20000hrs
    ECO1 mode30000hrs(TBD)
    ECO2 modeTBD
    Projection LensF1.7
    f2.94mm
    Zoom/FocusManual
    Throw Ratio0.235:1
    Zoom RatioN/A
    Screen size80-120 inch
    Lens ShiftN/A
    CRDynamic Contrast Ratio
    (FOFO)
    5000,000:1
    Native Contrast Ratio
    (FOFO)
    350:1(Min)
    NoiseNoise(dB)TGT:
    37dB(Normal) 27dB(ECO1)
    UniformityUniformity(Actual Min)
    -ISO21118
    80%
    ARAspect RatioNative:16:10 Compatible: 4:3/16:9
    Terminal(I/O port)
    InputVGA*1
    HDMI*2
    Video*1
    Audio in
    (mini jack,3.5mm)
    *1
    Audio in (RCA×2) <Audio L/R>*1
    USB-A*1
    USB-B*1(Display)
    RJ45*1(Display)
    YCbCr/ComponentN/A
    S-VideoN/A
    OutputVGA*1
    Audio out
    (mini-jack,3.5mm)
    *1
    ControlRS232*1
    RJ45*1 (Control)
    USB-B*1
    LAN*1
    General Spec
    AudioSpeaker16W*1
    Dust filterW/Filter
    Filter Life time7300h(TBD)
    Power ConsumptionPower Requeirements100~240V@ 50/60Hz
    Power Consumption
    (Normal) (Max)
    TBD
    Power Consumption
    (ECO1) (Max)
    TBD
    Power Consumption
    (ECO2) (Max)
    TBD
    ECO Standby Mode Power Consumption<0.5W
    Temp.&HumidityOperating Temp.5 to 40°C
    Operating Thumidity.20-80%
    Storage Temp.-10 to 50°C
    Storage Thumidity.10-85%
    High altitude1700-3000m
    Other Functions
    KeystoneKeystone Correction
    (Lens@center)
    V: ±15° H: ±15°
    Pincushion/Barrel Correction 4 corner
    6 Corner Geometry correction Grid image tune
    OSDLanguages26 languages:
    English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
    LAN ControlLAN Control-RoomView (Crestron)Yes
    LAN Control--
    AMX Discovery
    Yes
    LAN Control--
    PJ Link
    Yes
    Scanning FrequencyH-Synch Range15~100KHz
    V-Synch Range24~85Hz
    Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
    Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i
    and 1080p
    SW settingAuto SetupINPUT SEARCH,AUTO PC,Auto
    Keystone
    BlankYes
    SuspendYes(5miniutes no singnal as default)
    Picture modeDynamic, Standard, Cinema, Colorboard, Blackboard(Green)
    Cooling time5s
    Closed captionYes
    Auto CeilingYes
    D-Zoom1~19
    Others360° projectionYes
    Wireless display

    (Optional function)
    SmartPhone:
    Android:Install APK for Android
    iphone: Airplay function
    PC:
    Support WiFi Display@Windows&MAC system through dongle

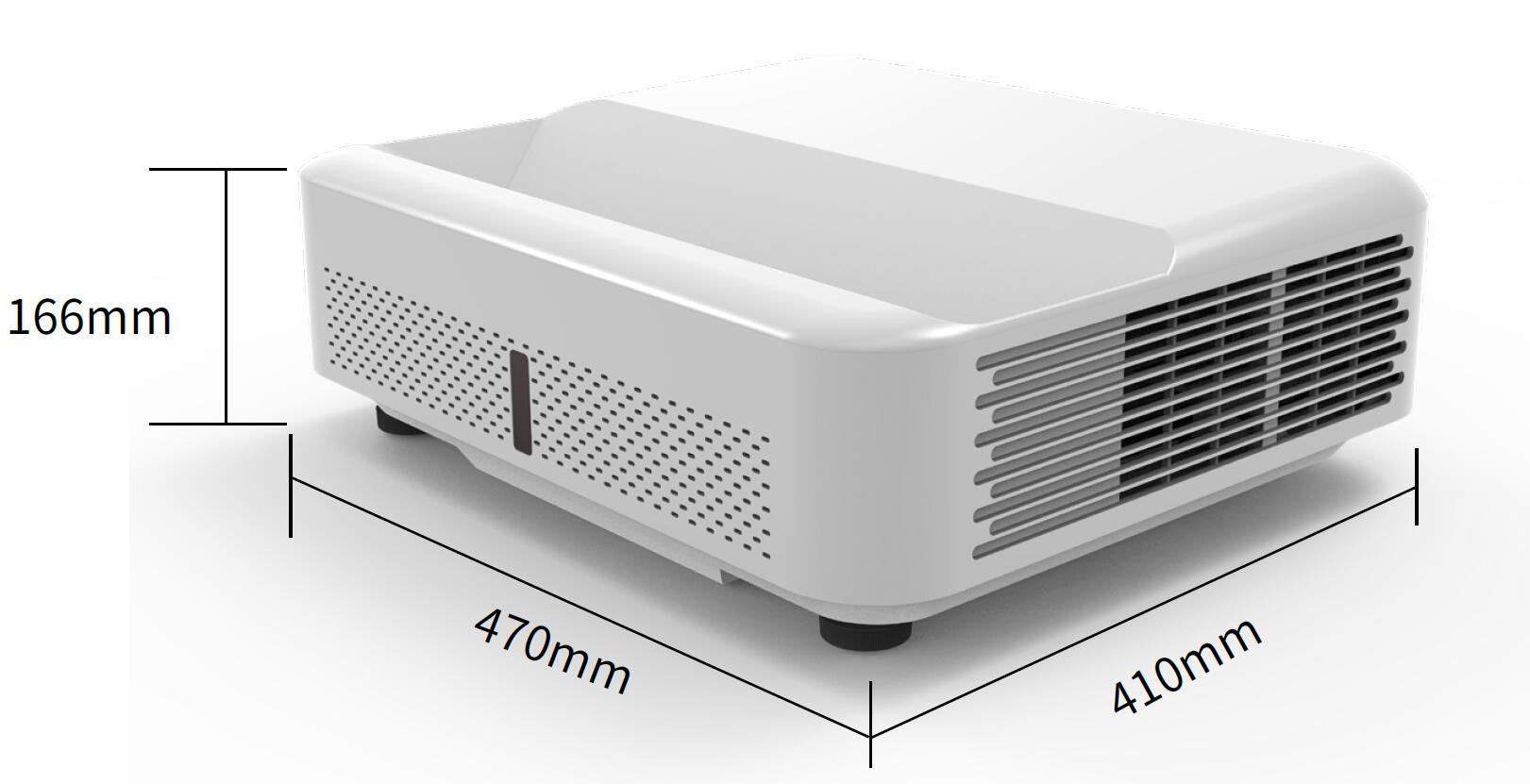

    Dimension&Weight
     MAX Dimensions
    (WxDxH mm)
    470*410*166;
    With lens protrusion
    Net. Weight (KG)9Kg
    Accessory
     Manual LanguagesChinese,English
     Standard AccessariesPower cord Remote control&RC Battery
