Description:
The query machine is gradually being used in all aspects of our
daily life and work. For example, we can see the all-in-one machine
in many occasions such as telecommunications business halls, postal
business halls, tax collection halls, city streets (city
information query), office buildings, airports, stations, banks,
museums, libraries, exhibitions, hospitals, hotels, etc.
The touch all-in-one machine is composed of advanced touch screen,
motherboard (high-performance, low-power industrial-grade special
motherboard, Intel processor), memory, hard disk (high-speed
solid-state hard disk), graphics card and other electronic
components.
The body shell is made of high-quality cold-rolled plate, and the
surface is industrial-grade paint process wear-resistant design,
rust-proof, anti-magnetic, and anti-static. Through the intelligent

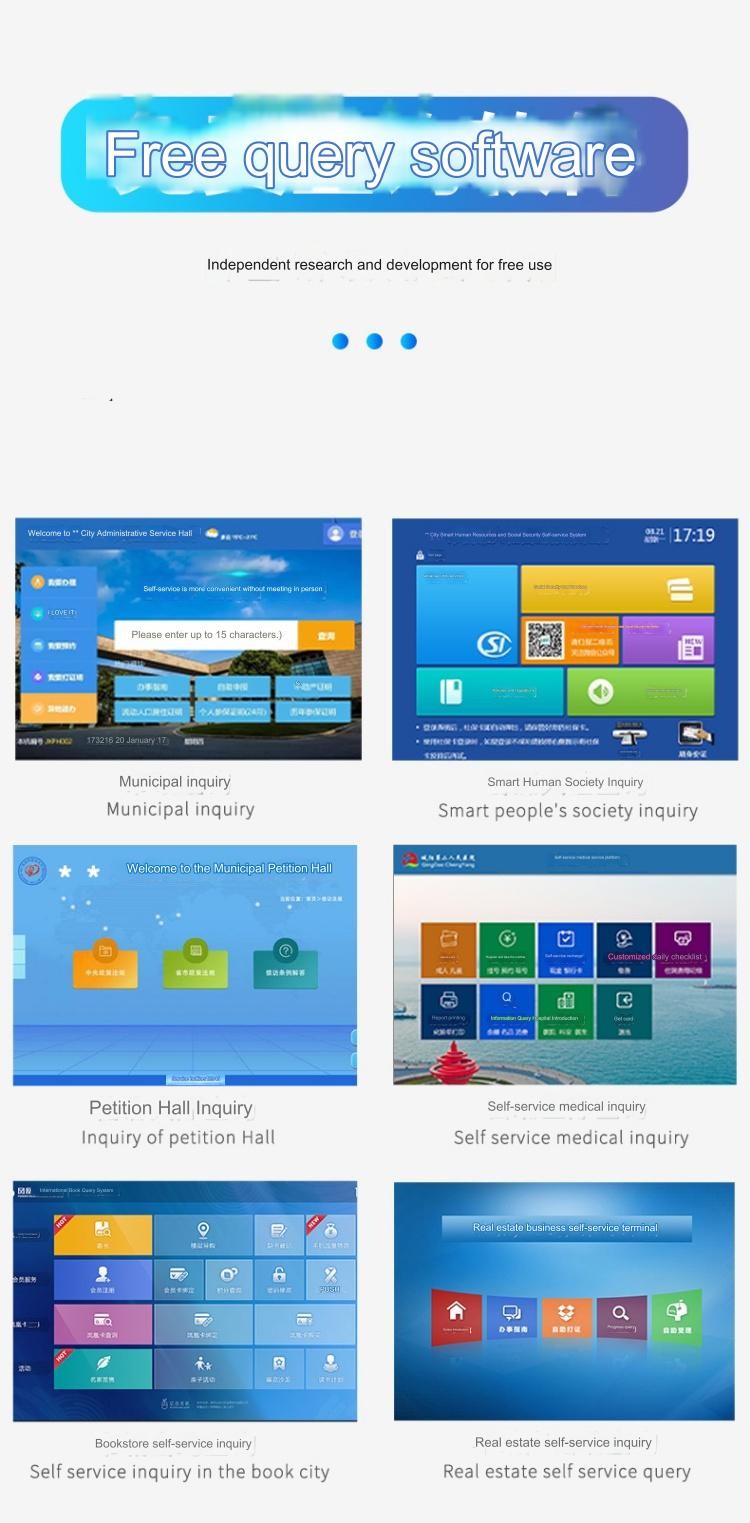

operation platform, it can realize public information query,
advertising display, media interaction, conference content display,
offline experience store product display, etc. The operation is
simple, fast, safe and stable, meeting more daily interactive
display needs, and supporting 7X24 hours of uninterrupted and
smooth operation.
The product design is simple and elegant, more aesthetic,
cost-effective, supports wall-mounted installation and
floor-standing installation, easy installation, rich maintenance
door, easy and convenient maintenance, industrial-grade parts,
better heat dissipation, lower power consumption, metal front frame
design, fine workmanship, and humanized detail design.
Specifications:
| Display parameters | |
| Panel size | 49" |
| Resolution | 1920*1080(pixels) |
| Pixel pitch | 0.55* 0.55 mm |
| brightness | 350cd/m² (typ.) |
| Contrast | 1200:1 (typ.) |
| Color | 16.7M (8bit) |
| Response time | 8ms (typ.) |
| Viewing area (H*V) | 1073.8*604 mm |
| Angle (H*V) | 178°/178° |
| Service life | 30,000 hrs (typ.) |
| Mainboard parameters (optional) | V100 motherboard (4K solution) |
| Running the system | Android 12 |
| chip | GK6760-V100Octa-core cortex A55Frequency1.5GHz |
| Memory | 2G |
| storage | 16G |
| network | 100MEthernet/WiFi-2.4G |
| Video Format | supportAVS,HDCP,mp4,H264,H265wait |
| Image Format | JPG, JPEG, BMP, PNG,wait |
| Menu language | Chinese/English, etc. |
| External connection port | |
| USB2.0 | *1(support1路USB 3.0) |
| USB2.0(OTG) | *1 |
| HDMIinterface | *1(supportHDMIenter) |
| RJ45 | *1 |
| WIFI 2.4Gantenna | *1 |
| Touch parameters | |
| Touch Type | Infrared touch |
| Touch points | 10point |
| power supply | |
| Speaker power | 5W*2 |
| Standby power | ≤0.5W |
| Power supply for the whole machine | AC110V-220V,50-60 Hz |
| Machine power | ≤120W |
| Work Environment | |
| Operating temperature | 0℃~40℃ |
| Operating humidity | 20%~85%(No condensation) |
| Storage temperature | -10℃～60℃ |
| Storage humidity | 10%~ 60%(No condensation) |
| Material | |
| Housing Material | Aluminum frame + tempered glass + metal back cover |
| Shell color | Silver + black frame + black back cover |
| size | |
| Bare metal size (W*H*D) | 1140.7*674.7*70.5 mm |
| External dimensions of packaging (W*H*D) | 1200*755*160 mm |
| VESAhole | 400*400mm, 4*M8screw |
| weight | |
| net weight | 42KG |
| Gross Weight | 46KG |
| appendix | |
| Power cord | *1 |
| Warranty card | *1 |
| Certificate | *1 |
|
Wall Mount | *1 |
