Description:
The touch all-in-one machine is composed of advanced touch screen,
motherboard (high-performance, low-power industrial-grade special
motherboard, Intel processor), memory, hard disk (high-speed
solid-state hard disk), graphics card and other electronic
components. It is the same as the working principle of traditional
PC. The appearance structure of the touch all-in-one machine adopts
ergonomic design, which is slim and beautiful, simple and elegant.
The body shell is made of high-quality cold-rolled plate, and the
surface is industrial-grade paint process wear-resistant design,
rust-proof, anti-magnetic, and anti-static. Through the intelligent
operation platform, it can realize public information query,
advertising display, media interaction, conference content display,
offline experience store product display, etc. The operation is
simple, fast, safe and stable, meeting more daily interactive
display needs, and supporting 7X24 hours of uninterrupted and
smooth operation.
Feature:
Multi-point intelligent touch control

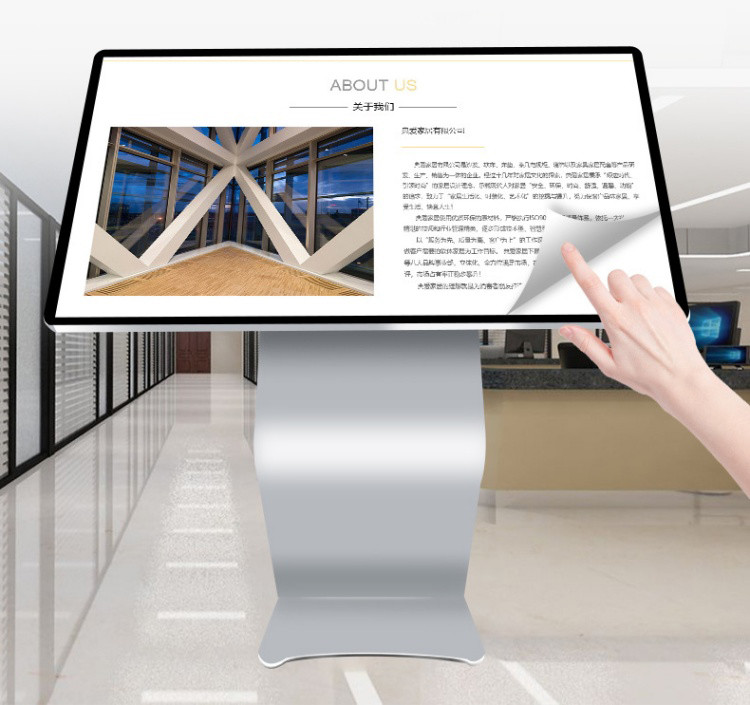

The 55-inch vertical infrared touch all-in-one machine has fast
response speed, strong light resistance, driver-free, plug-and-play
excellent performance, and can smoothly support handwriting
recognition input.
High-definition resolution
The 55-inch vertical infrared touch all-in-one machine adopts a
full HD (1920*1080) LCD panel,
with a 178-degree viewing angle, high contrast and brightness 3D
digital noise reduction, intelligent elimination of residual
images, ghosting
and other distortion phenomena, making the display clearer, more
stable, more colorful, and realistic tones.
Multimedia information processing
Real-time video, audio decoding, real-time video, audio playback;
compatible with a variety of image, animation
audio formats have Ethernet network interfaces, support centralized
control through TCP/IP networks, can be
through routers, optical cables, metropolitan area networks, PSTN,
etc., the system can even be distributed all over the world,
realize super information release through wide area networks
(Internet), and achieve human-computer interaction.
Integrated design
The product design is simple and elegant, more aesthetic,
cost-effective, supports wall-mounted installation and
floor-standing installation, easy installation, rich maintenance
door, easy and convenient maintenance, industrial-grade parts,
better heat dissipation, lower power consumption, metal front frame
design, fine workmanship, and humanized detail design.
Specifications:
size | 55'' |
Display parameters | |
Panel size | 55" |
Resolution | 1920*1080(pixels) |
Pixel pitch | 0.63* 0.63mm |
brightness | 350cd/m² (typ.) |
Contrast | 1200:1 (typ.) |
Color | 16.7M (8bit) |
Response time | 8ms (typ.) |
Viewing area (H*V) | 1209.6*680.4 mm |
Angle (H*V) | 178°/178° |
Service life | 30,000 hrs (typ.) |
Mainboard parameters (optional) | Windows motherboard (2K solution) |
Running the system | Win 7/Win 10 |
chip | I5-3210MDual-core four-thread main frequency 2.5GHz |
Memory | 4G |
storage | 128G |
network | 100M/1000MEthernet/WiFi-2.4G |
Video Format | MPEG2-4,H.264wait |
Image Format | JPG, JPEG, BMP, PNG,wait |
Menu language | Chinese/English, etc. |
External connection port | |
USB2.0 | *2(支持2路USB 3.0) |
USB2.0(OTG) | *2 |
HDMIinterface | *1(supportHDMIOutput) |
RJ45 | *1 |
WIFI 2.4Gantenna | *1 |
Touch parameters | |
Touch Type | Infrared touch |
Touch points | 10point |
power supply | |
Speaker power | 5W*2 |
Standby power | ≤0.5W |
Power supply for the whole machine | AC110V-220V,50-60 Hz |
Machine power | ≤150W |
Work Environment | |
Operating temperature | 0℃~40℃ |
Operating humidity | 20%~85%(No condensation) |
Storage temperature | -10℃~60℃ |
Storage humidity | 10%~ 60%(No condensation) |
Material | |
Housing Material | Aluminum frame + tempered glass + metal back cover |
Shell color | Silver + black frame + black back cover |
size | |
Bare metal size (W*H*D) | 1275.2*754.2*73.9 mm |
External dimensions of packaging (W*H*D) | 1350*848*160 mm |
VESAhole | 400*400mm, 4*M8screw |
weight | |
net weight | 50KG |
Gross Weight | 55KG |
appendix | |
Power cord | *1 |
Warranty card | *1 |
Certificate | *1 |
Wall Mount | *1 |
Dimensions | |
